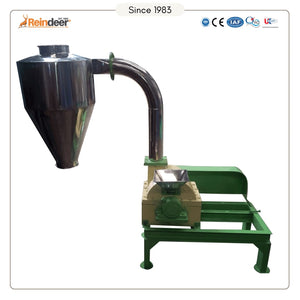

10 HP impact pulverizer

Rs. 303,250.00 Rs. 242,600.00
MODEL IP10+ SS304
Production Capacity 100 kg/Hr
Grinding Materials Turmeric, Dry ginger, Black Papper, Wooden Saw Dust(50% Cap.), Dry Leaves, Lime Stone, Kattha, Kanku, Crayon For Fine Grinding
Electric Motor 10 HP Crompton Motor IE2 ISI
Motor Brand CG - Crompton
Ele. Motor RPM 1440 RPM
Phase Three Phase
Voltage 440V, 50Hz
Power Consumption 7.5 kW (7.5 Units) 7500 W

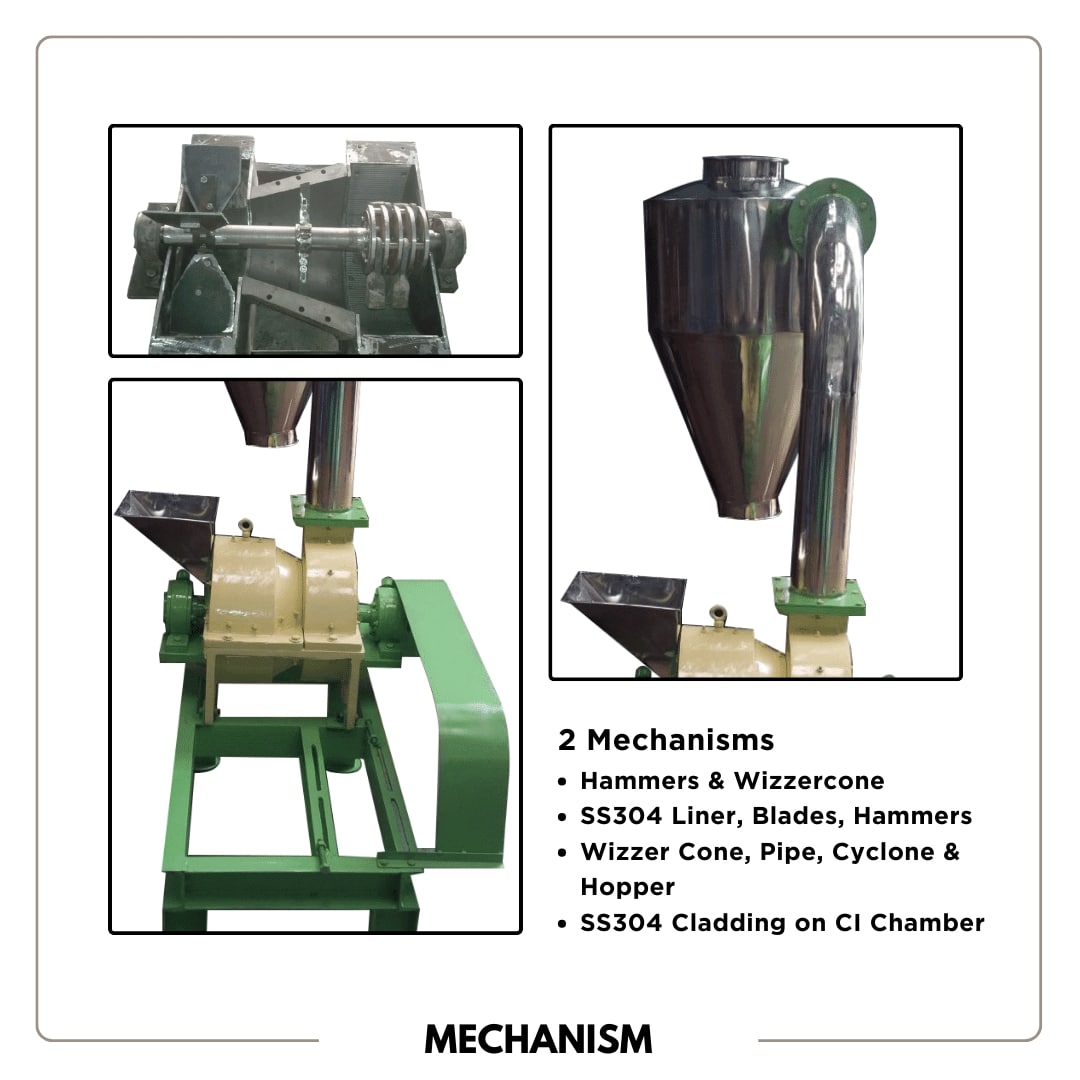

Mechanism RPM ~3000 RPM
Chamber Size 14" x 6.5"
Body Structure SS full Body
Contact Parts SS Liner, Hammers and Sieves
Weight 250 Kg
Dimension 5'4"*5'3"*8'5"
Accessories 2 Clothes, Hopper, Motor Pulley
Foundation Required Yes or Anti-Vibration Pad
